gpio_init.c File Reference

Source that initializes the GPIO pins. More...

#include "AppGlobal.h"

Include dependency graph for gpio_init.c:

Functions
void	gpio_init (void)
	Function to perform LCD functionality.
int	configure_GPIO_pins (int GPIONUM, int Direction)
	configure the gpio pins
int	GPIO_pin_SetValue (int GPIONUM, int Value)
	Gpio set value high or low.

Detailed Description

Source that initializes the GPIO pins.

Function Documentation

configure_GPIO_pins()

int configure_GPIO_pins	(	int	GPIONUM,
		int	Direction )

configure the gpio pins

Parameters

GPIONUM	gpio pin number
Direction	direction to which the what the gpio pin has to be set [1 - out] [0- in]

Returns

API_SUCCESSS_test on success or AP_FAILURE_test on failure

Here is the call graph for this function:

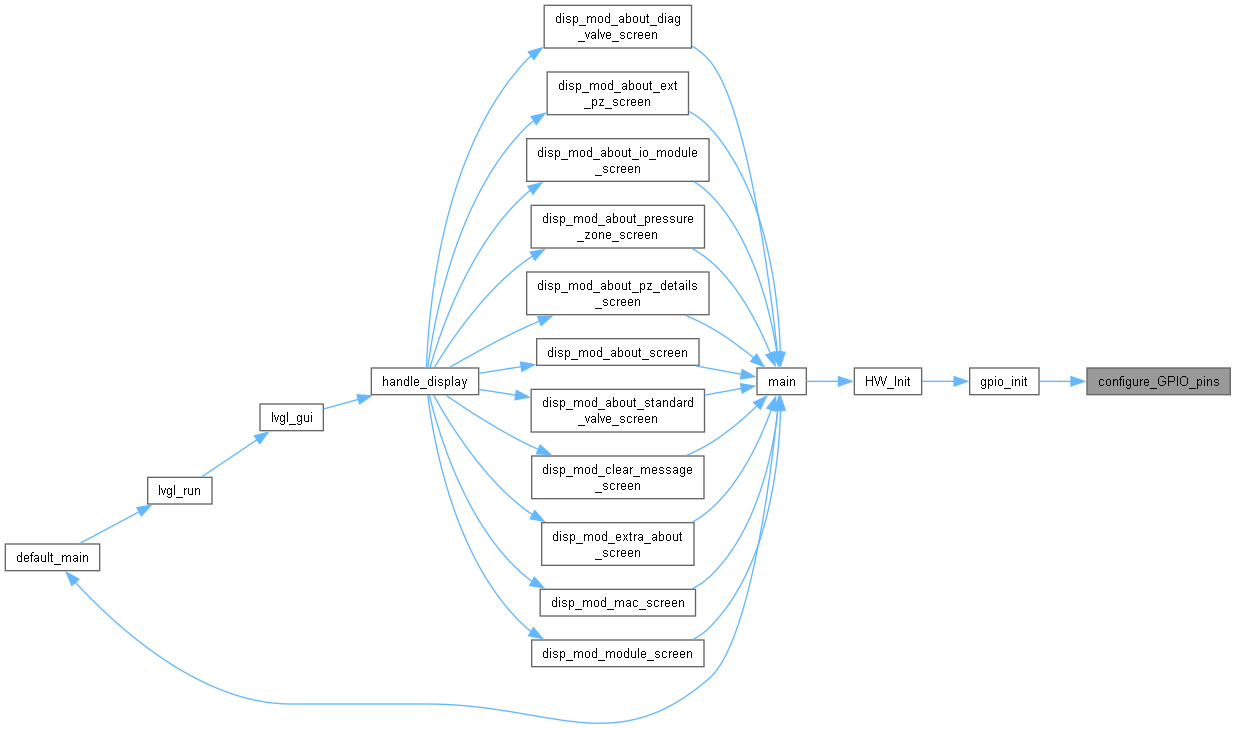

Here is the caller graph for this function:

gpio_init()

void gpio_init

(

void

)

Function to perform LCD functionality.

Parameters

NULL

Here is the call graph for this function:

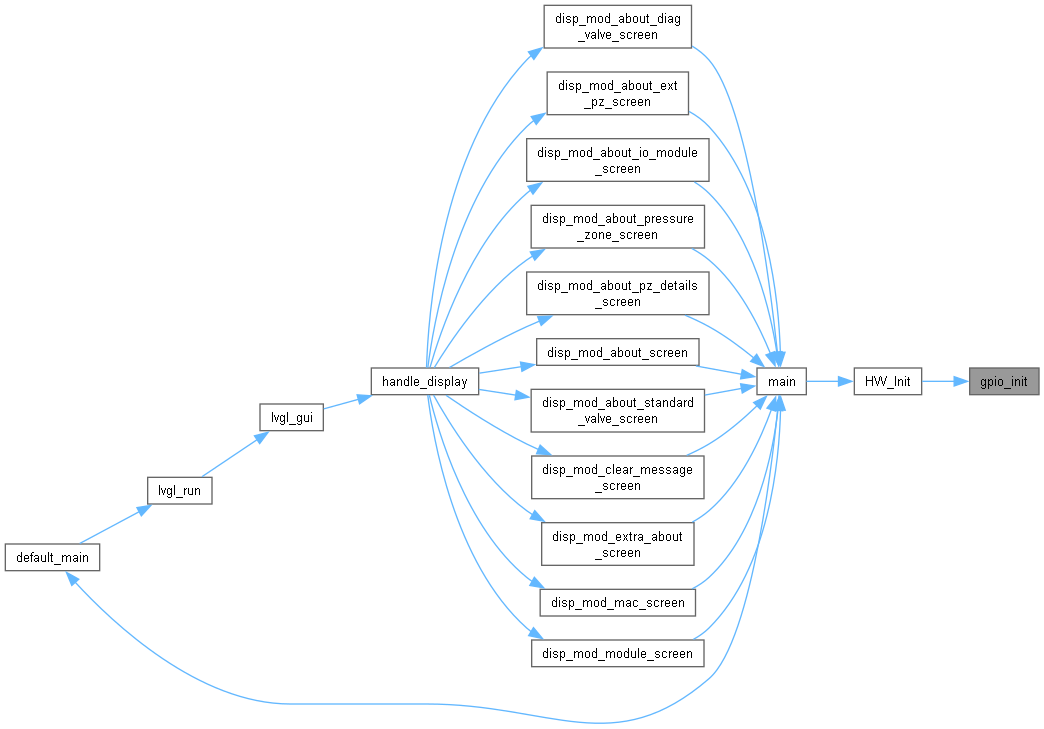

Here is the caller graph for this function:

GPIO_pin_SetValue()

int GPIO_pin_SetValue	(	int	GPIONUM,
		int	Value )

Gpio set value high or low.

Parameters

GPIONUM	gpio pin number
Value	[1- high] [0- low]

Returns

API_SUCCESSS_test on success or AP_FAILURE_test on failure

Here is the call graph for this function:

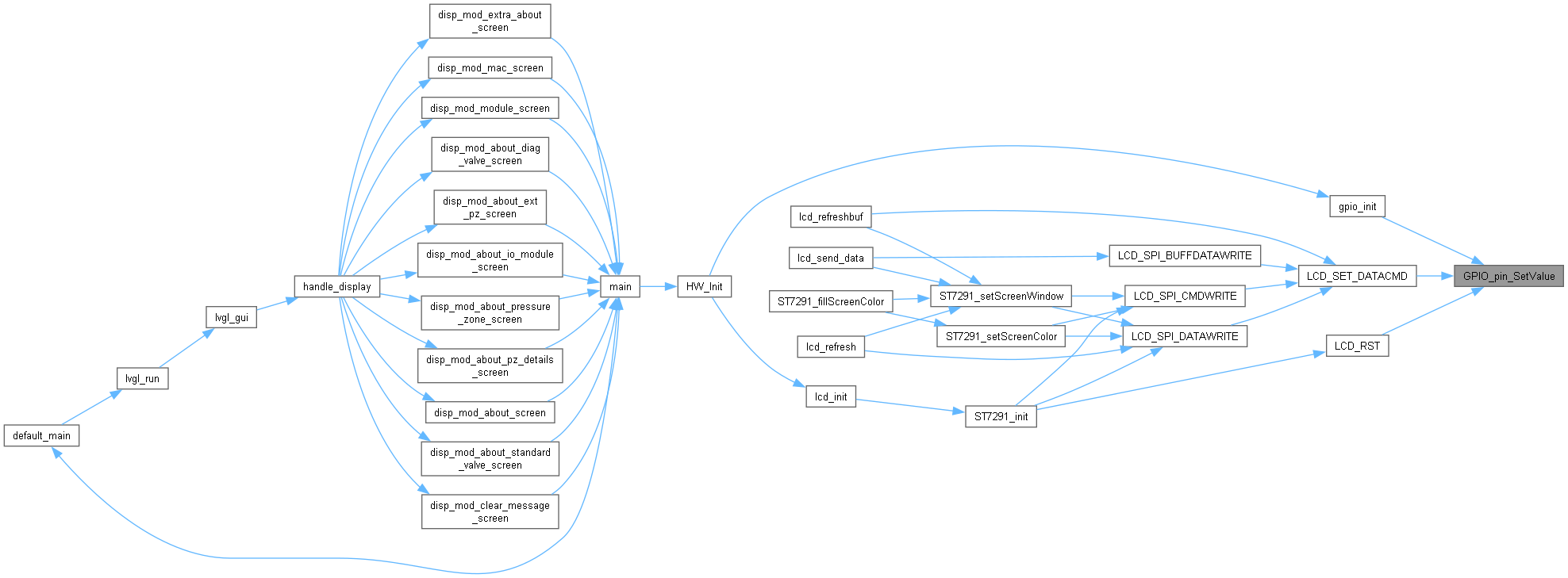

Here is the caller graph for this function:
