diag_valve_about_screen.c File Reference

Source that displays the diagnostic valves about screen. More...

#include "AppGlobal.h"
#include "../Header/API_Header/AppDataInterface.h"

Include dependency graph for diag_valve_about_screen.c:

Functions
void	disp_mod_about_diag_valve_screen (int diag_index, int pz_num, int station_num)
void	about_diag_style ()
	Function to initialize about pressure screen style.
void	common_label_creation (lv_obj_t *screen_name, char *text, lv_coord_t x, lv_coord_t y, const lv_font_t *font_name, uint32_t font_colour)

Variables
s_about_diag_count	s_about_diag_count_value [MACRO_MAX_STATION_PER_SYSTEM]
s_prszone_device_count_details	pz_count_details [MACRO_MAX_PRESSURE_ZONE]

Detailed Description

Source that displays the diagnostic valves about screen.

Function Documentation

about_diag_style()

void about_diag_style

(

void

)

Function to initialize about pressure screen style.

Parameters

None

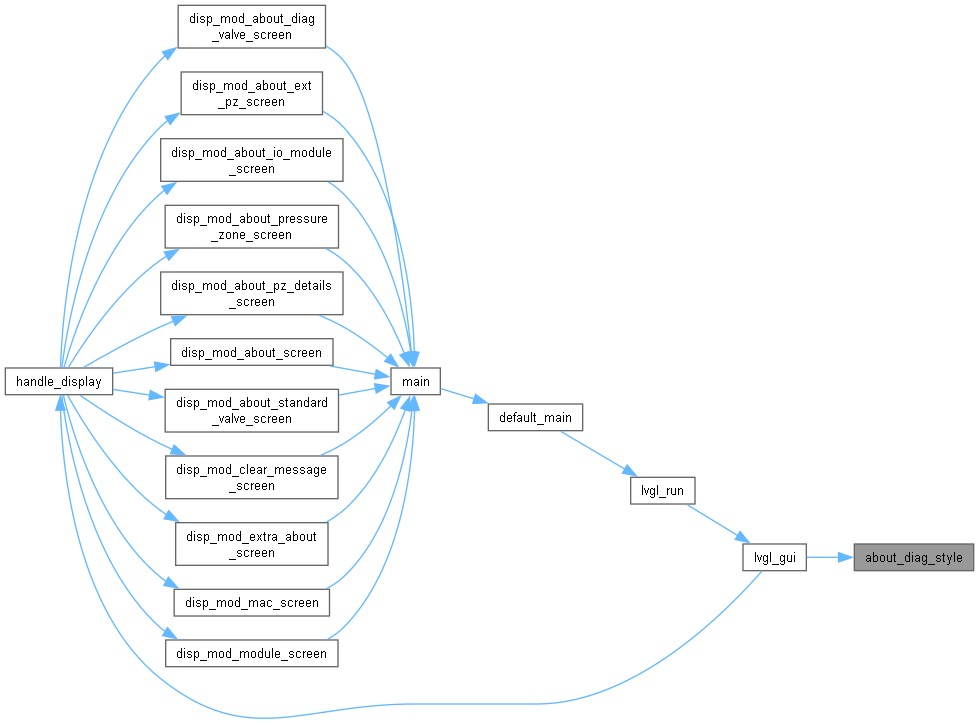

Here is the caller graph for this function:

common_label_creation()

void common_label_creation ( lv_obj_t * screen_name, char * text, lv_coord_t x, lv_coord_t y, const lv_font_t * font_name, uint32_t font_colour )

extern

Here is the caller graph for this function:

disp_mod_about_diag_valve_screen()

void disp_mod_about_diag_valve_screen	(	int	diag_index,
		int	pz_num,
		int	station_num )

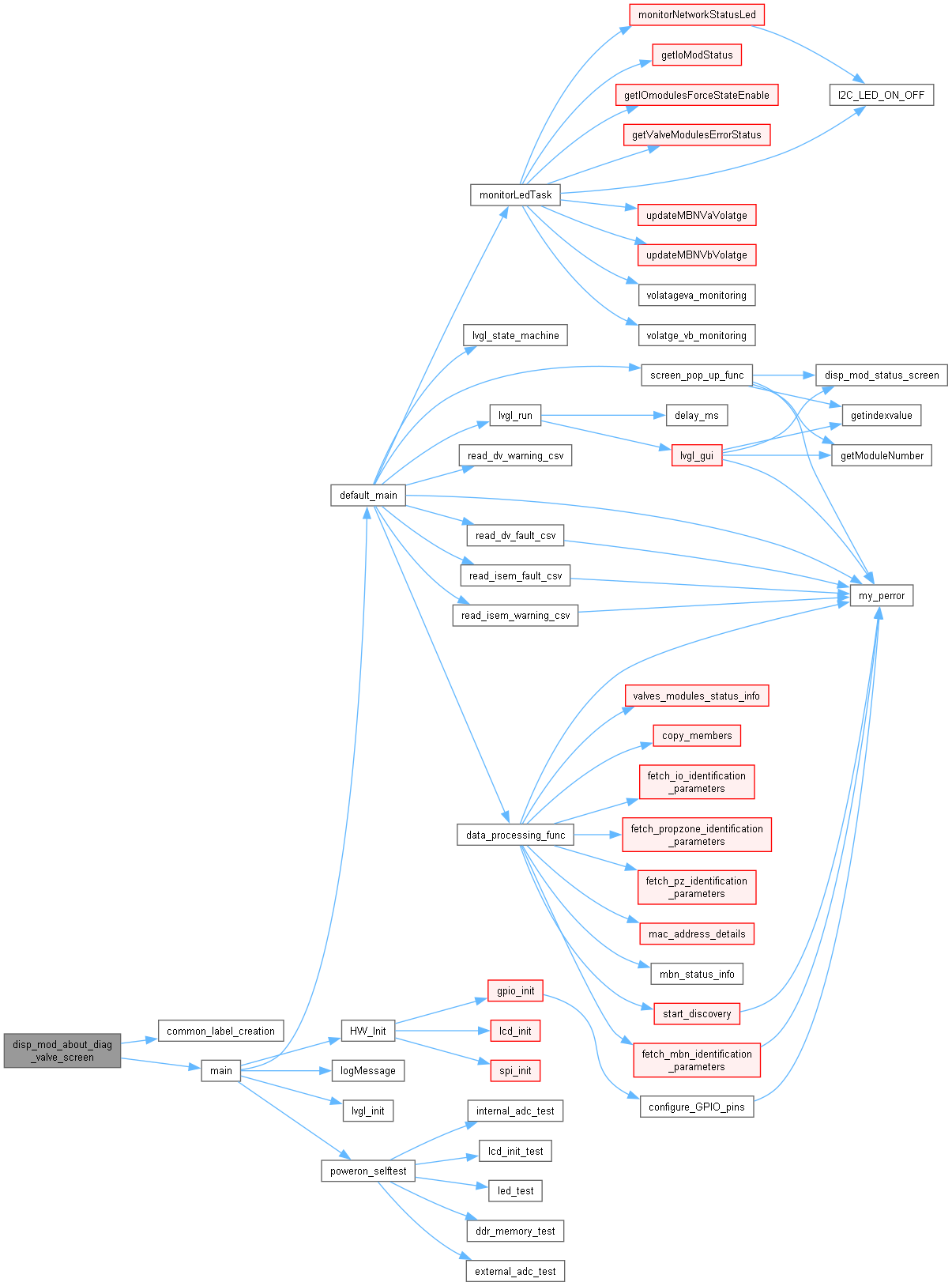

Here is the call graph for this function:

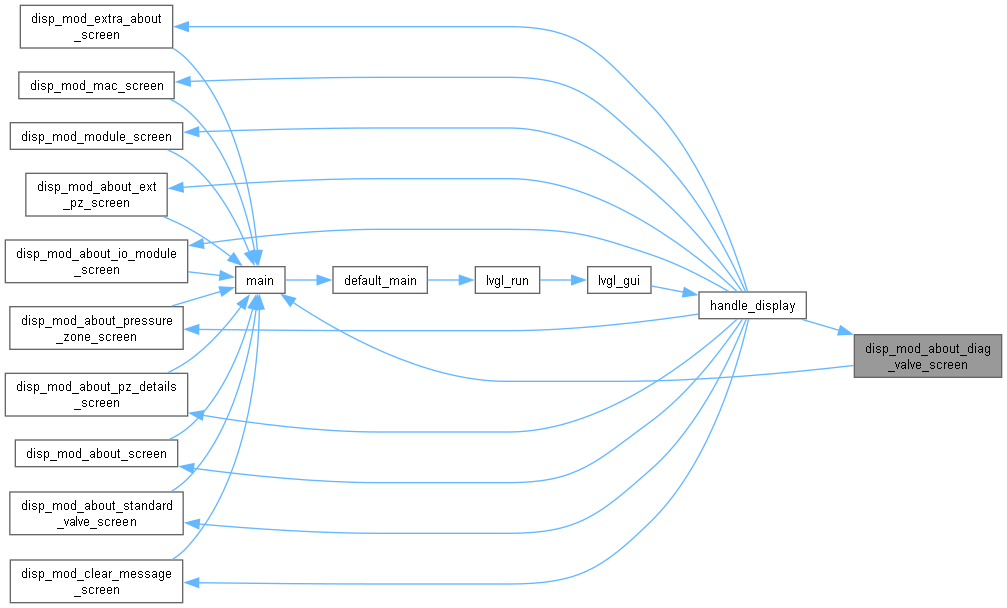

Here is the caller graph for this function:

Variable Documentation

pz_count_details

s_prszone_device_count_details pz_count_details[MACRO_MAX_PRESSURE_ZONE]

extern

s_about_diag_count_value

s_about_diag_count s_about_diag_count_value[MACRO_MAX_STATION_PER_SYSTEM]

extern
