default_task.c File Reference

source file that creates all the threads More...

#include "AppGlobal.h"

Include dependency graph for default_task.c:

Functions
void *	data_processing_func (void *arg)
	Function that processes all the IO-modules and valves real-time data.
void *	monitorLedTask (void *arg)
void	lvgl_gui (void)
	function that waits for key press events & calls handle_display function
void	read_dv_fault_csv ()
	Function that reads the fault data from CSV file & stores the same in the structure.
void	read_dv_warning_csv ()
	Function that reads the warning data from CSV file & stores the same in the structure.
void	read_isem_warning_csv ()
	Function that reads the isem_diag_warning data from CSV file & stores the same in the structure.
void	read_isem_fault_csv ()
	Function that reads the ISEM diag fault data from CSV file & stores the same in the structure.
int	getModuleNumber (int index)
int	getindexvalue (int index)
void	disp_mod_status_screen (int status_value, int indx)
	function to create the status screen
void	my_perror (const char *__s)
	function that displays the initializations error
void	delay_ms (int ms)
	function that calls delay in milliseconds
void *	lvgl_state_machine (void *arg)
	function that calls lvgl state machine
void *	lvgl_run (void *arg)
	function that calls the LVGL GUI screens (entry point to display screens)
void *	screen_pop_up_func (void *arg)
	function that calls the screen pop up
void	default_main (void)
	default function to create threads and events

Variables
pthread_mutex_t	mutex
int	G_KEY_PRESSED_EVENT
int	G_POP_EVENT
pthread_t	data_processing_thread
pthread_t	screen_pop_up_thread
pthread_t	thread_acquire
pthread_t	lvgl_state_thread
pthread_t	lvgl_run_thread
pthread_t	thread_led
int	g_status_value
uint8_t	cur_disp_scr_index
int	gg
int	kk

Detailed Description

source file that creates all the threads

Function Documentation

data_processing_func()

void * data_processing_func ( void * arg )

extern

Function that processes all the IO-modules and valves real-time data.

Returns

API_SUCCESS_test

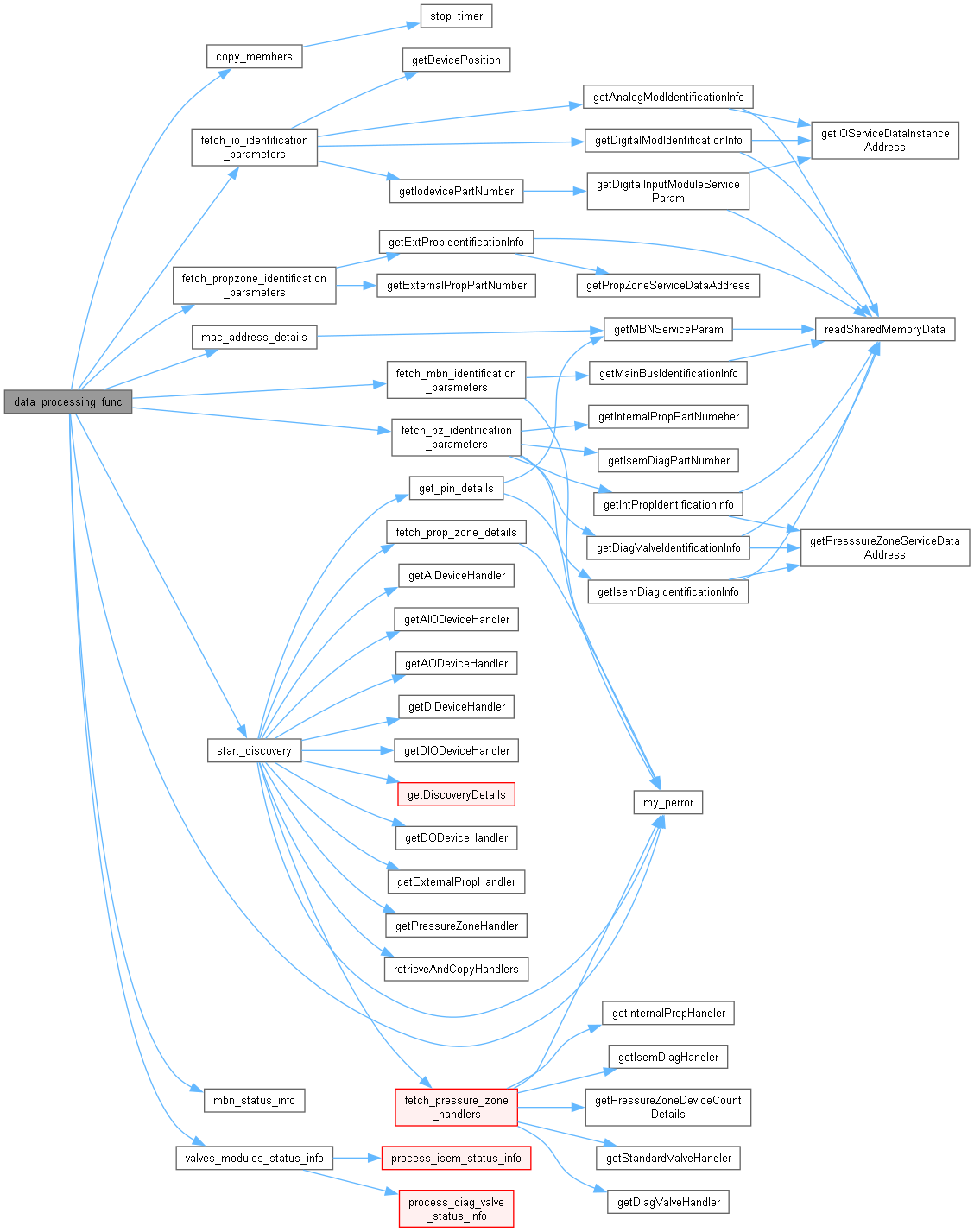

Here is the call graph for this function:

Here is the caller graph for this function:

default_main()

void default_main

(

void

)

default function to create threads and events

Parameters

none

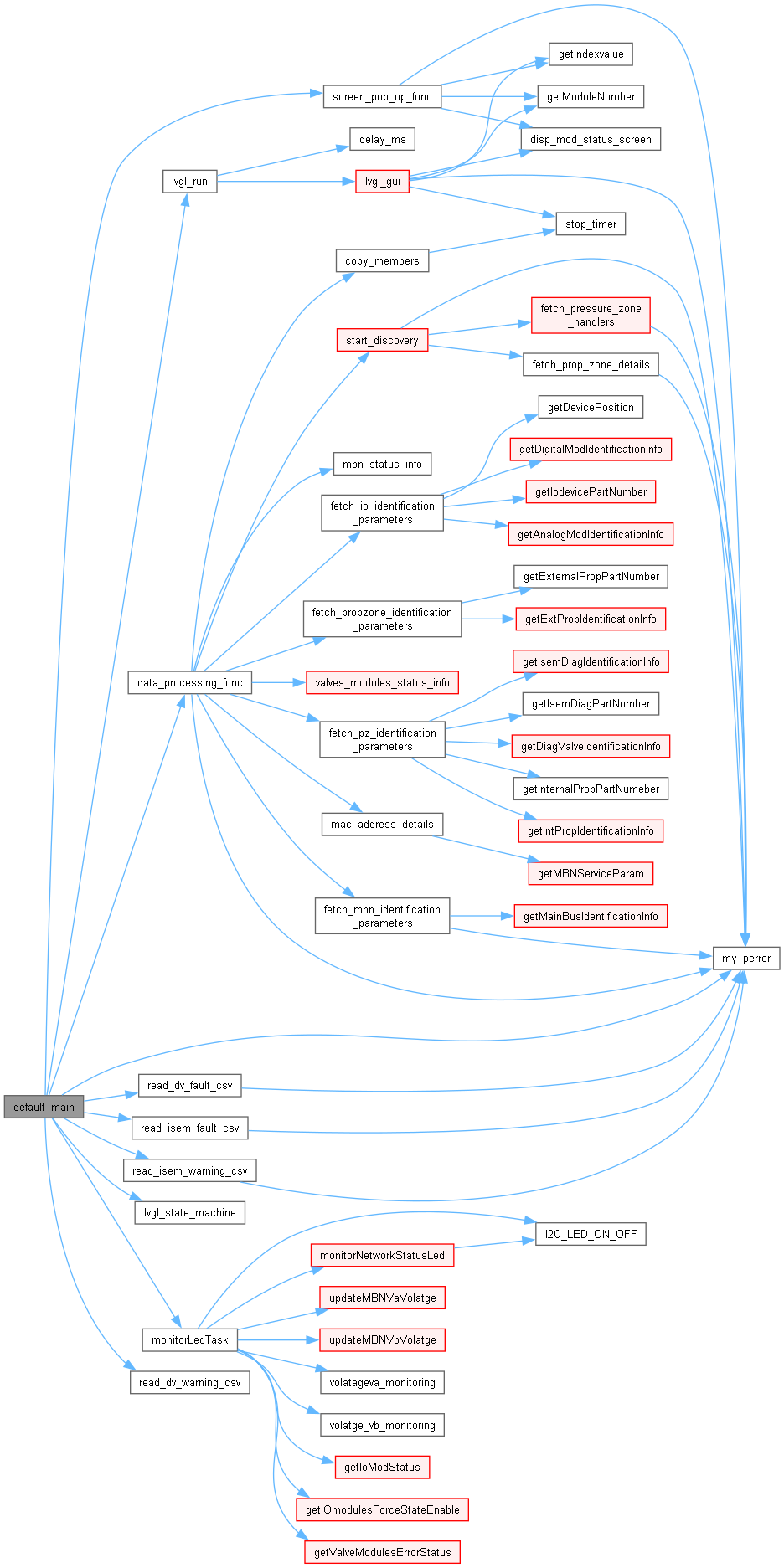

Here is the call graph for this function:

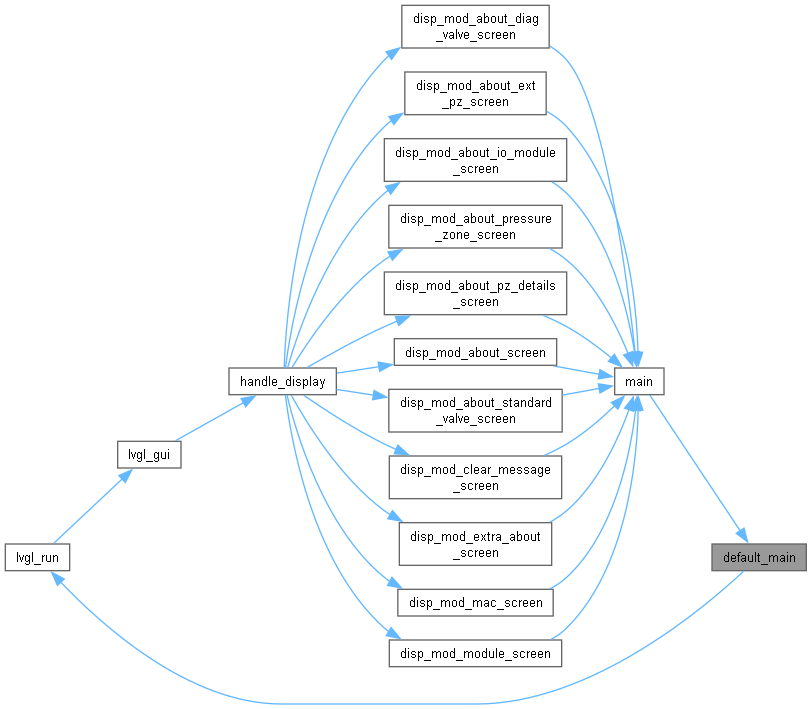

Here is the caller graph for this function:

delay_ms()

void delay_ms

(

int

ms

)

function that calls delay in milliseconds

Parameters

ms	- millisecond value

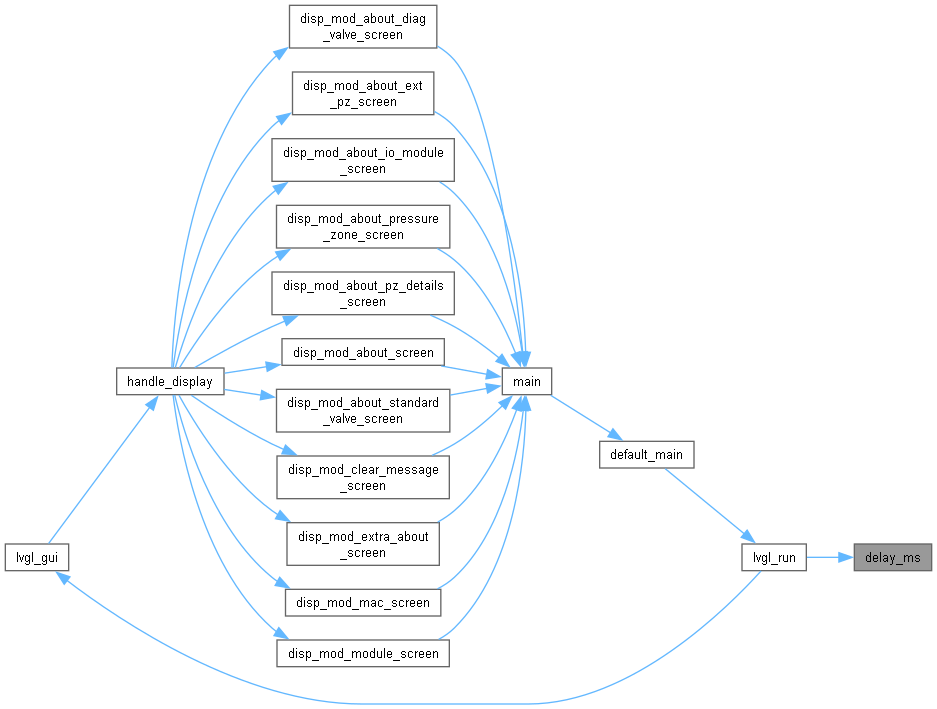

Here is the caller graph for this function:

disp_mod_status_screen()

void disp_mod_status_screen ( int status_value, int indx )

extern

function to create the status screen

Parameters

status_value

- (0 - normal, 1 - warning, 2 - fault)

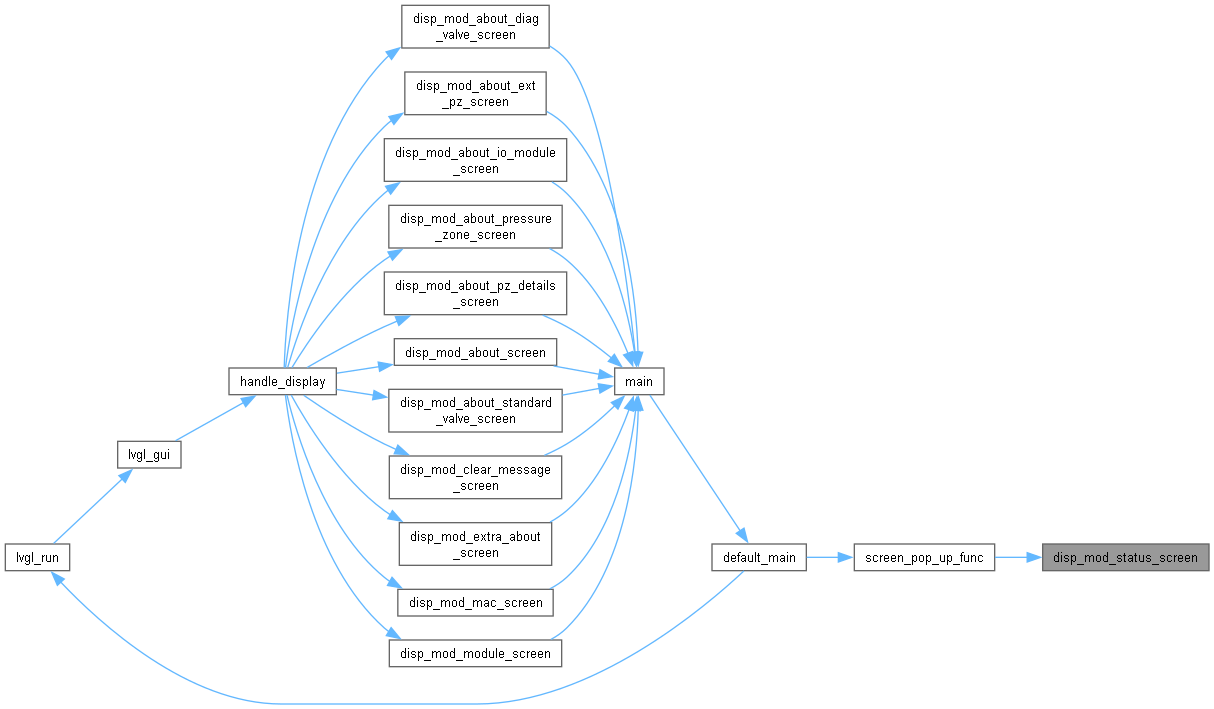

Here is the caller graph for this function:

getindexvalue()

int getindexvalue ( int index )

extern

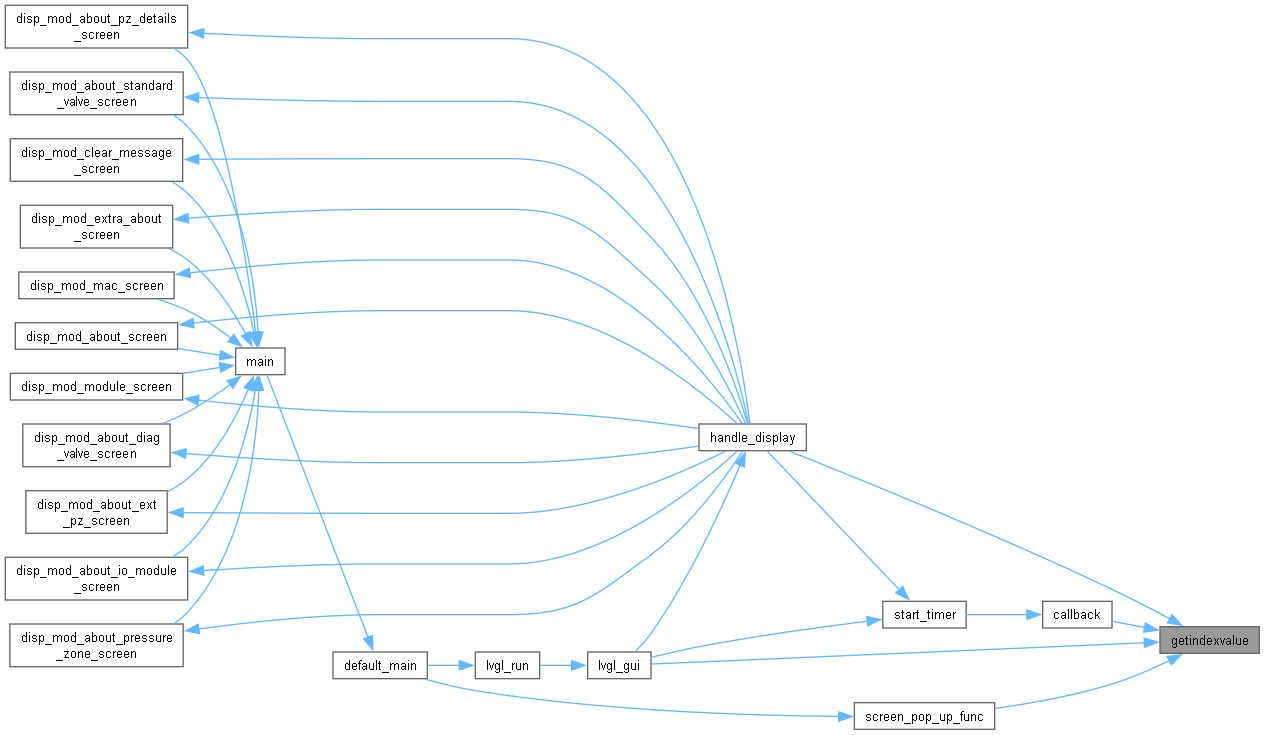

Here is the caller graph for this function:

getModuleNumber()

int getModuleNumber ( int index )

extern

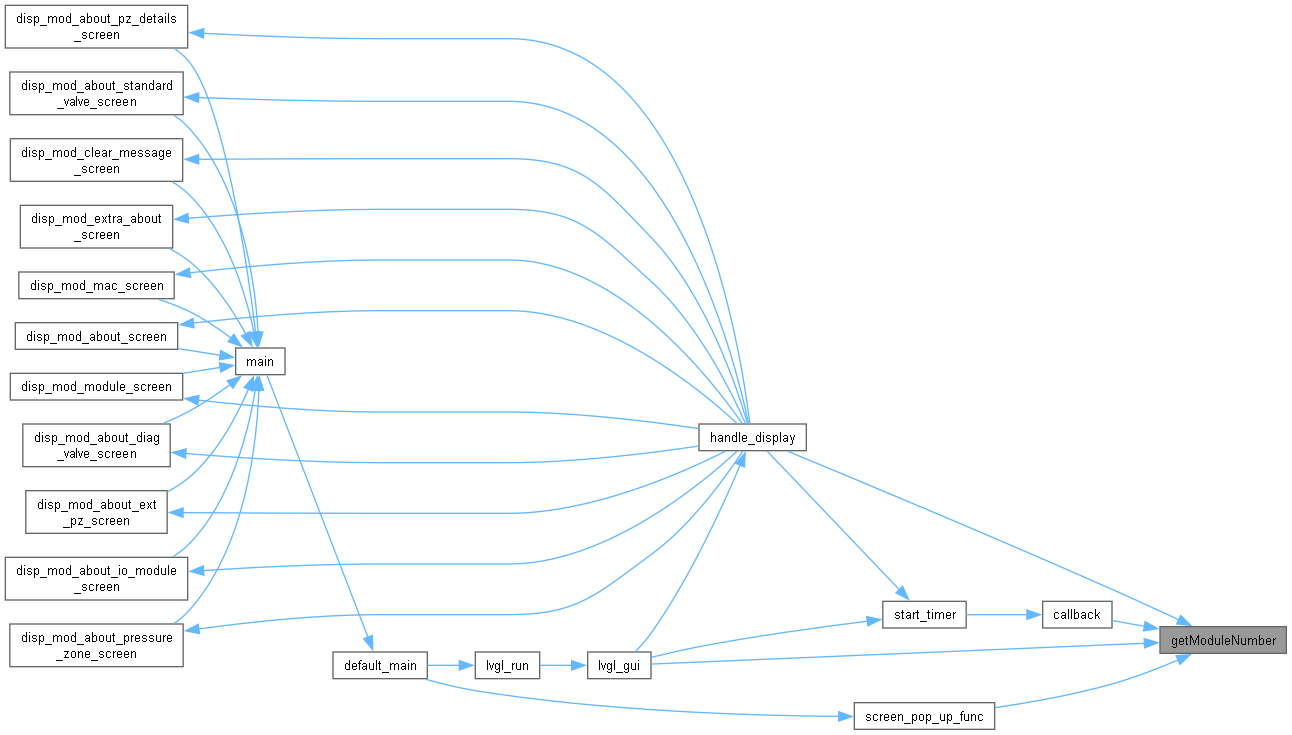

Here is the caller graph for this function:

lvgl_gui()

void lvgl_gui ( void )

extern

function that waits for key press events & calls handle_display function

Parameters

None

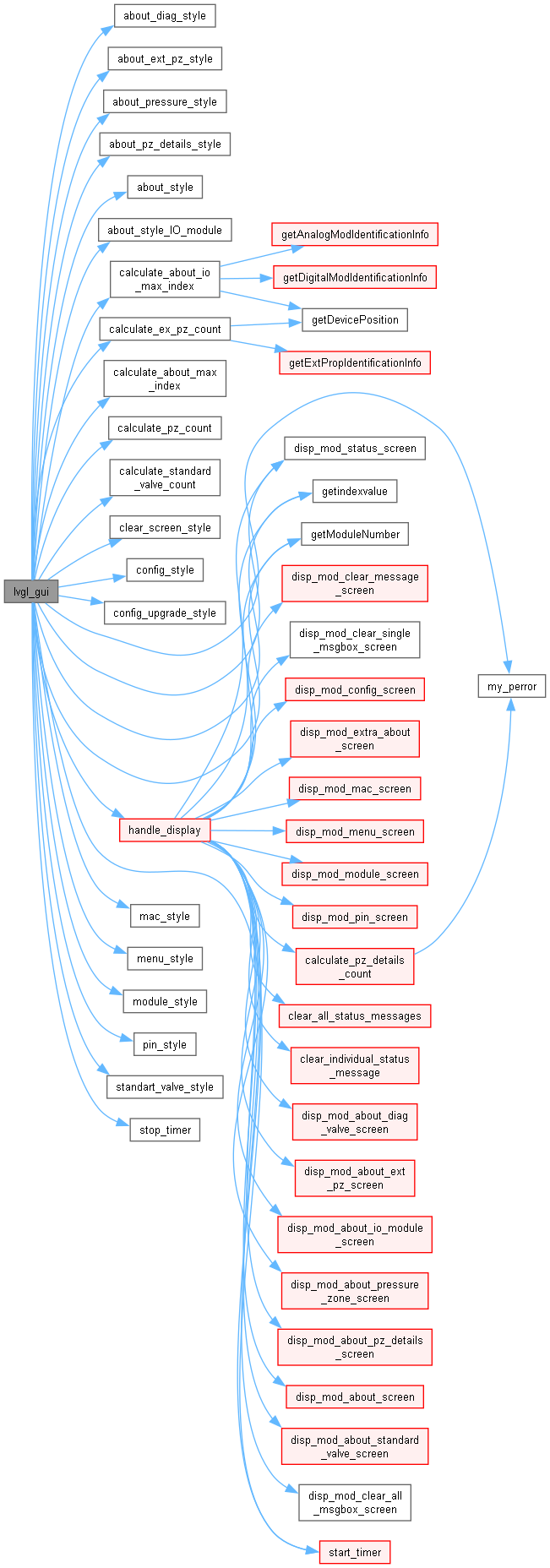

Here is the call graph for this function:

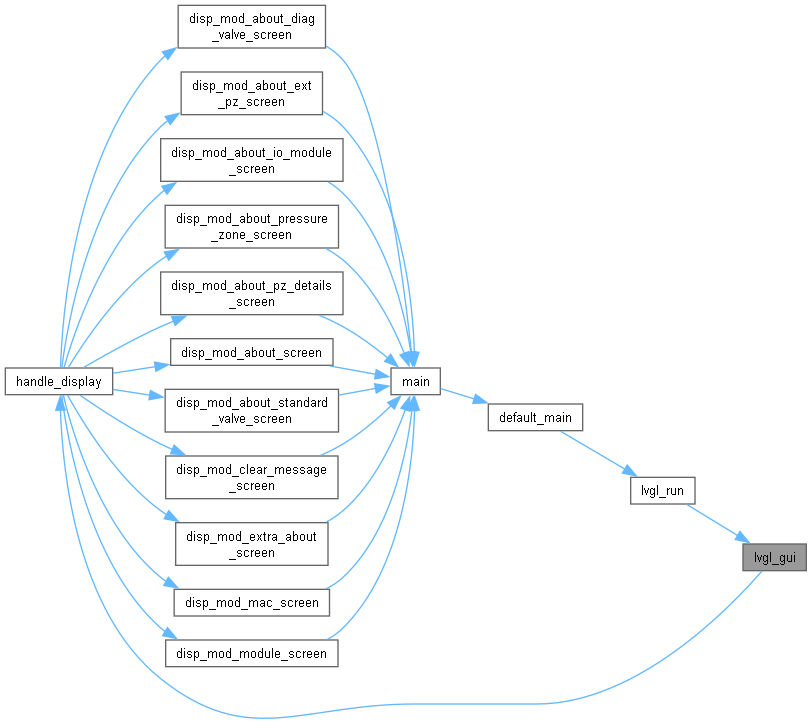

Here is the caller graph for this function:

lvgl_run()

void * lvgl_run

(

void *

arg

)

function that calls the LVGL GUI screens (entry point to display screens)

Parameters

none

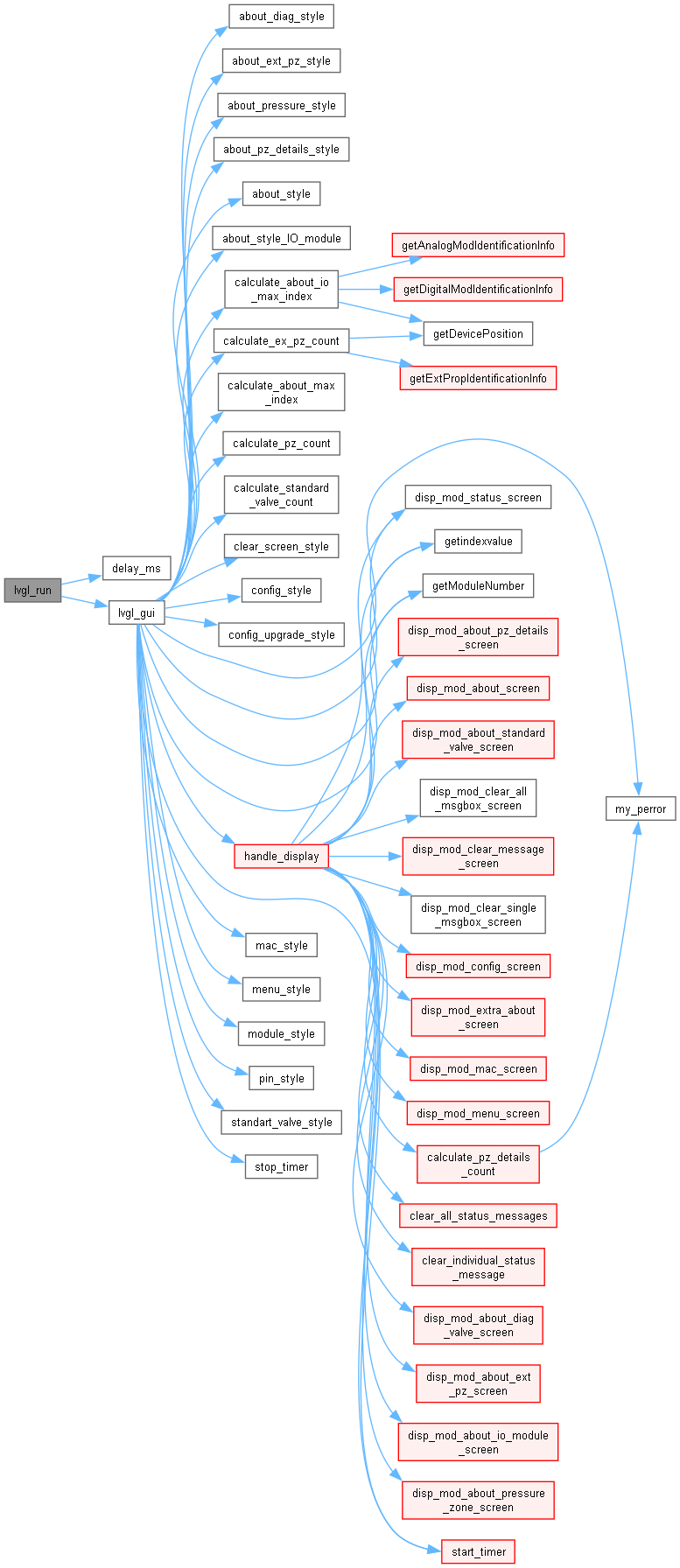

Here is the call graph for this function:

Here is the caller graph for this function:

lvgl_state_machine()

void * lvgl_state_machine

(

void *

arg

)

function that calls lvgl state machine

Parameters

none

Here is the caller graph for this function:

monitorLedTask()

void * monitorLedTask ( void * arg )

extern

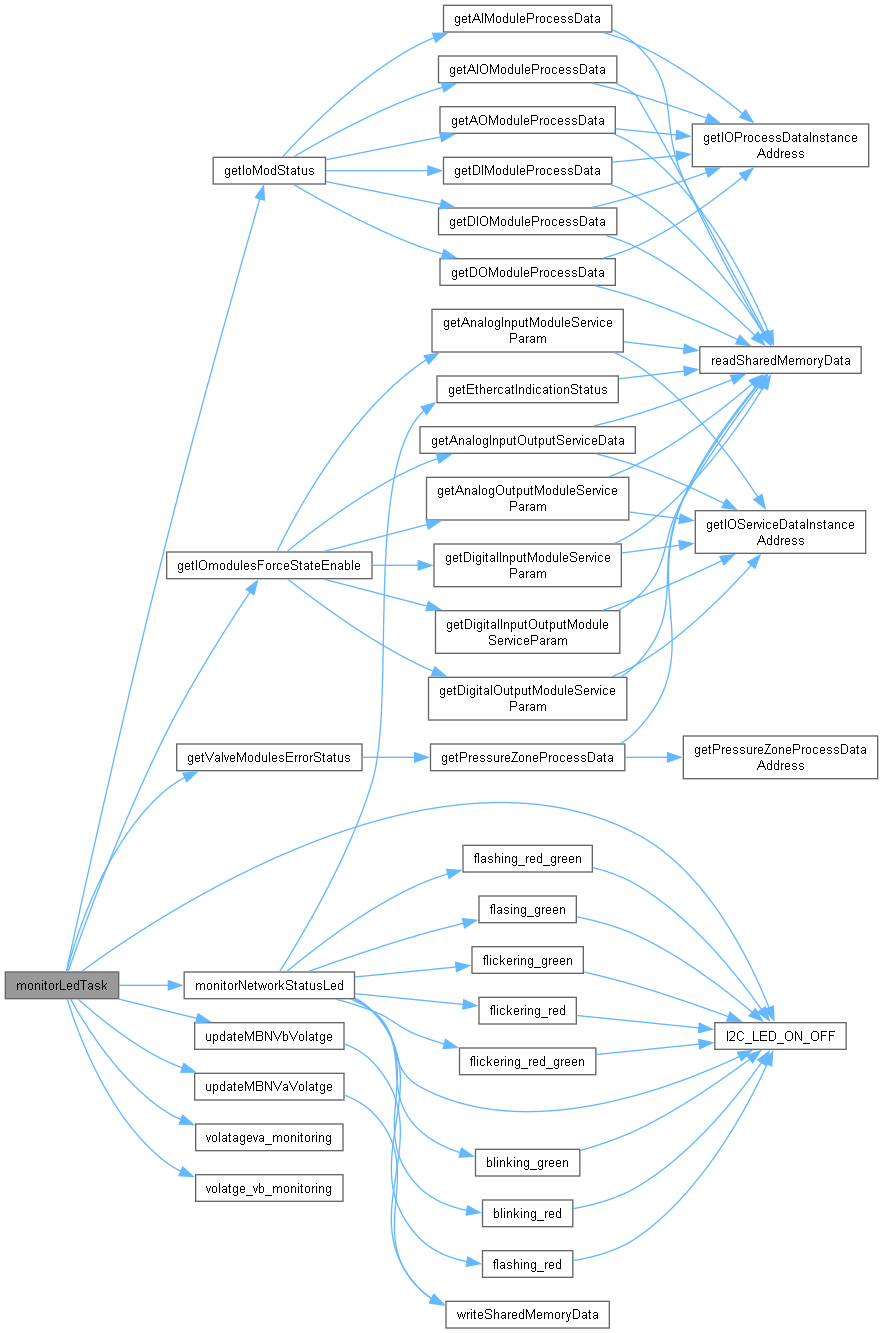

Here is the call graph for this function:

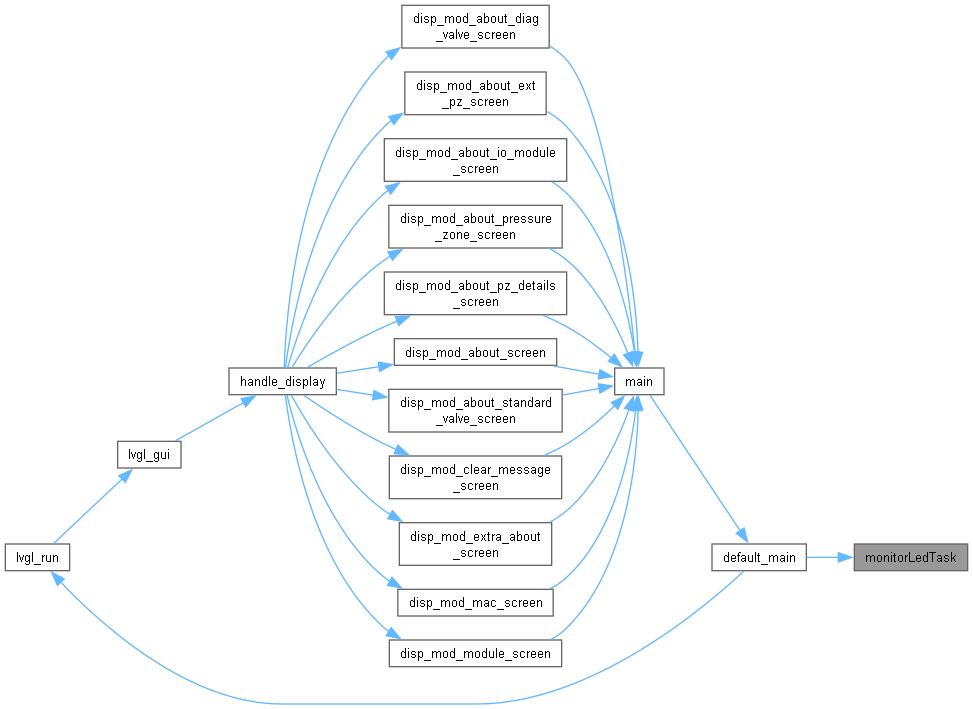

Here is the caller graph for this function:

my_perror()

void my_perror

(

const char *

__s

)

function that displays the initializations error

Parameters

s	- string message

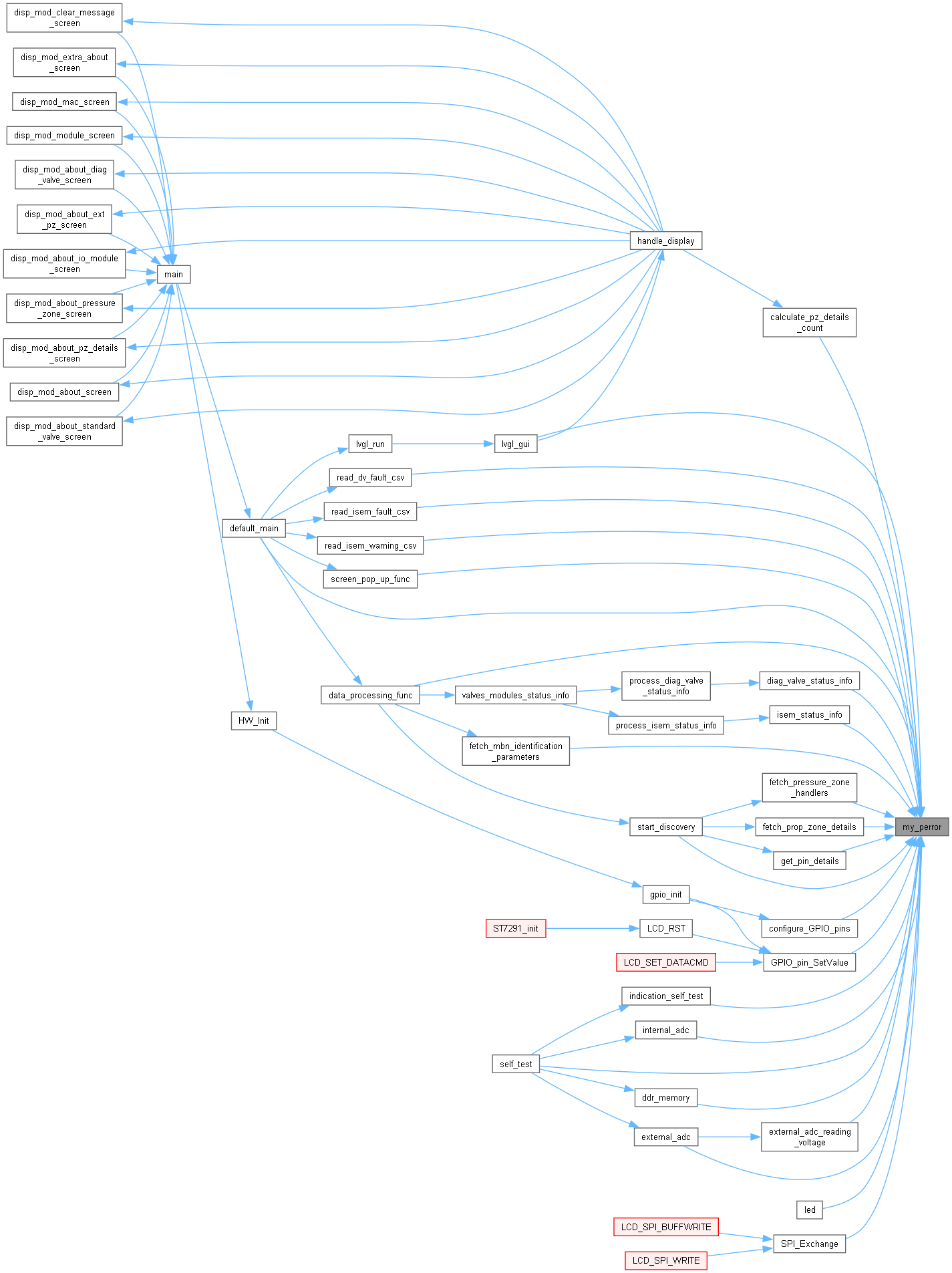

Here is the caller graph for this function:

read_dv_fault_csv()

void read_dv_fault_csv ( )

extern

Function that reads the fault data from CSV file & stores the same in the structure.

Parameters

None

Here is the call graph for this function:

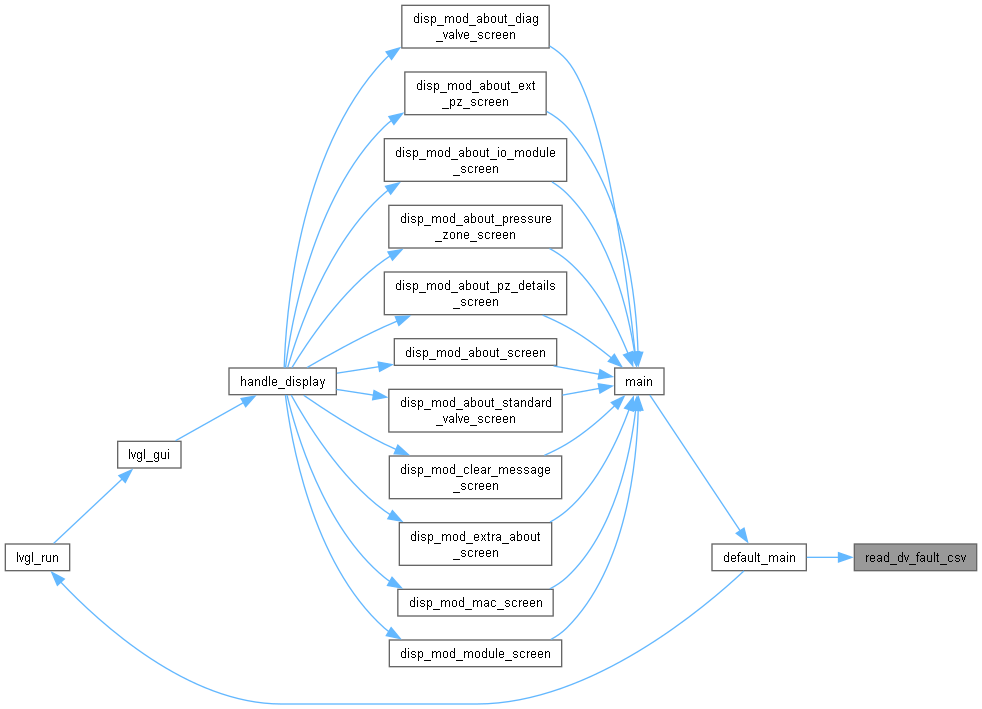

Here is the caller graph for this function:

read_dv_warning_csv()

void read_dv_warning_csv ( )

extern

Function that reads the warning data from CSV file & stores the same in the structure.

Parameters

None

Here is the caller graph for this function:

read_isem_fault_csv()

void read_isem_fault_csv ( )

extern

Function that reads the ISEM diag fault data from CSV file & stores the same in the structure.

Parameters

None

Here is the call graph for this function:

Here is the caller graph for this function:

read_isem_warning_csv()

void read_isem_warning_csv ( )

extern

Function that reads the isem_diag_warning data from CSV file & stores the same in the structure.

Parameters

None

Here is the call graph for this function:

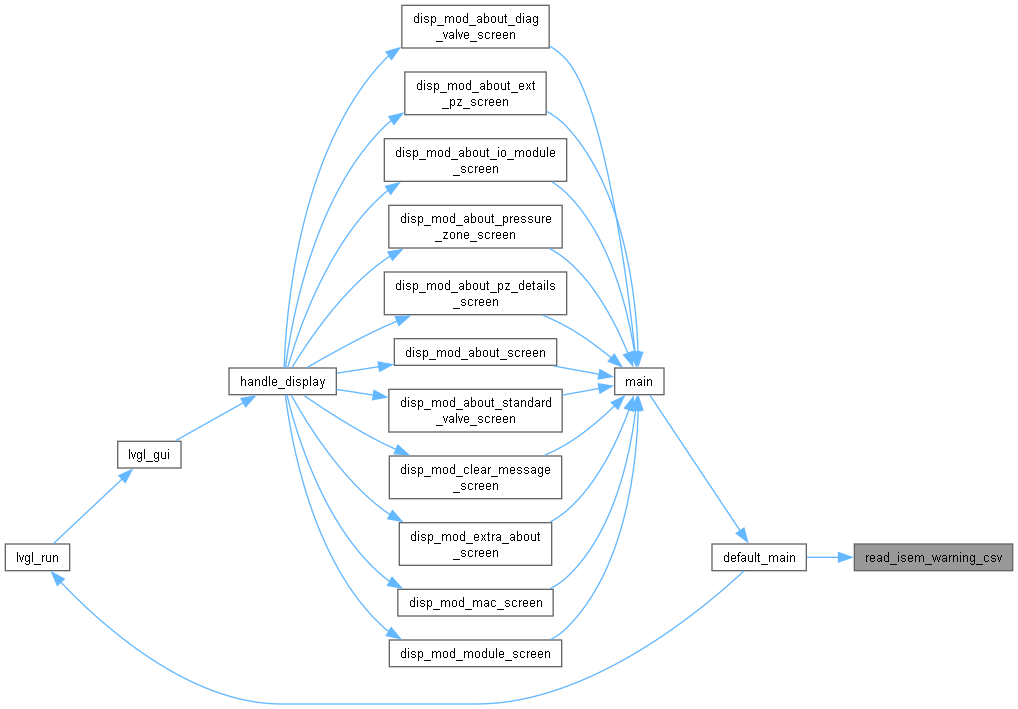

Here is the caller graph for this function:

screen_pop_up_func()

void * screen_pop_up_func

(

void *

arg

)

function that calls the screen pop up

Parameters

none

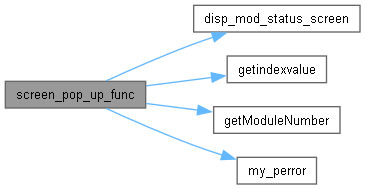

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

cur_disp_scr_index

uint8_t cur_disp_scr_index

extern

data_processing_thread

pthread_t data_processing_thread

G_KEY_PRESSED_EVENT

int G_KEY_PRESSED_EVENT

G_POP_EVENT

int G_POP_EVENT

g_status_value

int g_status_value

extern

gg

int gg

kk

int kk

lvgl_run_thread

pthread_t lvgl_run_thread

lvgl_state_thread

pthread_t lvgl_state_thread

mutex

pthread_mutex_t mutex

screen_pop_up_thread

pthread_t screen_pop_up_thread

thread_acquire

pthread_t thread_acquire

thread_led

pthread_t thread_led
